Svalson Sliding Window model SV iso

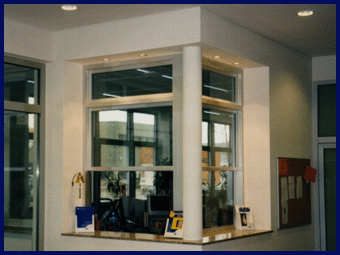

Sliding Window model SV
Robust, vertically sliding, electrically driven safety sliding window which is suitable for either indoor or outdoor installation. The sliding window has a frame made in either steel or stainless steel. The SV model is specially designed for installations in which strict demands are made on protection against assault or firearm attack.
The SV model can be equipped with everything between 6 mm thick laminated glass up to 75 mm thick bullet-resistant glass. The sliding window is equipped with a safety latch which prevents the sliding section from dropping in the event of an accident. The sliding window is automatically locked. The sliding window is controlled by means of a manoeuvre box or foot switch.

Examples of versions
Window with two sections Fixed aluminium section above the window Window with fixed light to the right Window with fixed light to the left and to the right
Window with
two sections
 		 Fixed aluminium
section above the window
 Window with fixed light
to the right
 		 Window with fixed light to the left
and to the right

Fixed window Fixed aluminium section below the window Window with fixed light to the left Two windows with a fixed light in the middle
Fixed window Fixed aluminium
section belowthe window		 Window with fixed light
to the left		 Two windows with a fixed light
in the middle

Technical information
Width Customers choice.
Height Customers choice.
Frame thickness 63 mm and above*.
Width of side posts 45 mm and above*.
Height of top profile 45 mm and above*.
Height of bottom profile Varying*, not all sliding windows are provided with a bottom profile.
Width/Height of glass frames 20 mm and above*.
* These dimensions are dependent on the thickness of the glass and on the safety requirements.
Construction Motor, transmission, safety latch and automatic locking are integrated within the frame.
Locking Mechanical lock which automatically locks the window in closed position. As an option, the window can be provided with a mechanism which locks the window in intervals across the entire opening height. Key lock is optional.
Motor 24 V DC.
Transmission Cord.
Traction force Approx. 20-40 N.
Relief for transmission Friction clutch.
Power supply Transformer. Battery back-up is optional
Type of control Manoeuvre box. Foot switch is optional.
Glass Safety glass with thickness 6 mm and above. For instance 6 mm thick class E 60 fire-resistant glass, 16 mm thick class B1 impact-resistant glass or 75 mm thick class C5-SF bullet-resistant glass.
Finish White powder coating is standard. Other surface finishes available as an option include powder coating or painting in various colours.
Protection against fire The sliding window can be equipped with fire-resistant glass, e.g. 6 mm thick Pyran S (E 60) or 15 mm thick Pyrostop 30-10 (EI 60). However, the design is not type-approved for installation in firewalls, and object approval would then be necessary, hence we recommend our type-approved model SV-E60 instead. Please get in touch with our sales personnel for further information.
Alarm device Optional.
Design and material subject to change without prior notice.
