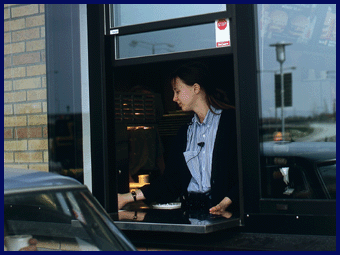

Sliding Window model 7018

Vertically sliding, electrically driven safety sliding window which is suitable for both indoor and outdoor installation.
The sliding window has a 70 mm aluminium frame and can be equipped with insulating glass or up to 20 mm thick safety glass. In its standard version, the sliding window is satin anodized and is equipped with D4-12 double glazing. The frame can be finished by painting, powder coating or other forms of anodizing. The sliding window is equipped with a safety latch which prevents the window from dropping in the event of an accident. The sliding window is automatically locked in the closed position and at intervals across the entire opening height. Control is by means of a control box or pedal.

Examples of versions


Window with two sections	Fixed alumin- ium section above the window	Window with fixed light to the right	Window with fixed light to the left and to the right

Fixed window	Fixed alumin- ium section below the window	Window with fixed light to the left	Two windows with a fixed light in the middle

Technical information

Width		Customers choice*.
Height		Customers choice.
Frame thickness		70 mm.
Width of side posts		50 mm.
Height of top profile		70 mm.
Bottom profile		No.
Width/Height of glass frames		20 mm.
		* It might be necessary to increase the dimensions on certain profiles it the width of the window exceeds 1400 mm. If the width of the window exceeds 1600 mm we recommend model 9018 or NJORD instead.
Construction		Motor, transmission, safety latch and automatic locking are integrated within the frame.
Locking		Mechanical lock which automatically locks the window in closed position and at 50 mm intervals across the entire opening height. Key lock is optional.
Motor		24 V DC.
Transmission		Cord.
Traction force		Approx. 20 N.
Relief for transmission		Friction clutch.
Power supply		Transformer. Battery back-up is optional
Type of control		Manoeuvre box. Foot switch is optional.
Glass		D4-12 double glazing is standard. Other glass up to 20 mm thick is available as an option, such as 16 mm thick class B1 impact-resistant laminated glass.
Finish		Satin anodized (minimum 10 µm) aluminium is standard. Other surface finishes available as an option include powder coating, painting or anodizing in various colours.
Protection against fire		No.
Alarm device		Optional.
Design and material subject to change without prior notice.
