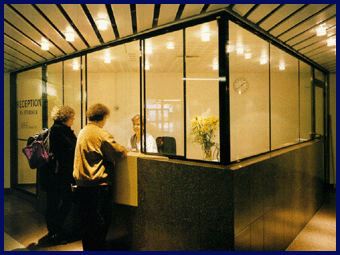

Sliding Window model 4507

Horizontally sliding, electrically driven safety sliding window which is suitable for indoor installation. The sliding window has a 45 mm aluminium frame and can be equipped with up to 6.5 mm thick glass. In its standard version, the sliding window frame is satin anodized and is fitted with 6 mm float glass. The frame can be finished by painting, powder coating or other forms of anodizing. The sliding window is automatically locked in the closed position. The sliding window is controlled by means of a manoeuvre box or foot switch.

Examples of versions


OX	XO	OLXO

XOOX	XOX	OXRO

OXXO	Fixed window	XO with overhead light

Technical information

Width		Customers choice.
Height		Customers choice*.
Frame thickness		45 mm.
Width of side posts		45 mm (48 mm on windows with overhead light).
Height of top profile		30 mm (45 mm on windows with overhead light).
Height of bottom profile		3 mm (plus a 6 mm guide on windows with version OXXO).
Width/Height of glass frames		20 mm.
		* If the height of the sliding section exceeds 1500 mm we recommend model 6018 instead.
Construction		Motor, transmission, safety latch and automatic locking are integrated within the frame.
Locking		Mechanical lock which automatically locks the window in closed position. Key lock is optional.
Motor		24 V DC.
Transmission		Cog belt.
Traction force		Approx. 20 N.
Relief for transmission		Friction clutch.
Power supply		Transformer. Battery back-up is optional
Type of control		Manoeuvre box. Foot switch is optional.
Glass		6 mm float glass is standard. Other glass up to 6.5 mm thick is available as an option, such as 6 mm hardened or 6 mm laminated glass.
Finish		Satin anodized (minimum 10 µm) aluminium is standard. Other surface finishes available as an option include powder coating, painting or anodizing in various colours.
Protection against fire		No.
Alarm device		Optional.
Design and material subject to change without prior notice.
