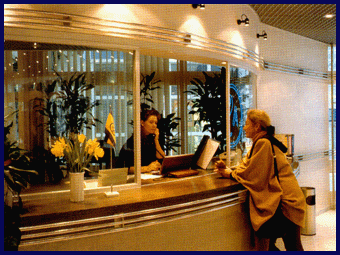

Sliding Window model 6018

Robust, horizontally sliding, electrically driven safety sliding window which is suitable for either indoor or outdoor installation. The sliding window has a 60 mm aluminium frame and can be equipped with insulating glass or up to 20 mm thick safety glass. In its standard version, the sliding window frame is satin anodized and is fitted with D4-12 double glazing. The frame can be finished by painting, powder coating or other forms of anodizing. The sliding window is automatically locked in the closed position and at intervals across the entire opening width. The sliding window is controlled by means of a manoeuvre box or foot switch.

Examples of versions


OX	XO	OLXO

XOOX	XOX	OXRO

OXXO	Fixed window	XO with overhead light

Technical information

Width		Customers choice.
Height		Customers choice.
Frame thickness		60 mm.
Width of side posts		50 mm (53 mm on windows with overhead light).
Height of top profile		45 mm (50 mm on windows with overhead light).
Height of bottom profile		5 mm plus a 6 mm guide.
Width/Height of glass frames		30 mm.
Construction		Motor, transmission and automatic locking are integrated within the frame.
Locking		Mechanical lock which automatically locks the window in closed position and at 50 mm intervals across the entire opening width. Key lock is optional.
Motor		24 V DC.
Transmission		Cog belt.
Traction force		Approx. 20 N.
Relief for transmission		Friction clutch.
Power supply		Transformer. Battery back-up is optional
Type of control		Manoeuvre box. Foot switch is optional.
Glass		D4-12 double glazing is standard. Other glass up to 20 mm thick is available as an option, such as 16 mm thick class B1 impact-resistant laminated glass.
Finish		Satin anodized (minimum 10 µm) aluminium is standard. Other surface finishes available as an option include powder coating, painting or anodizing in various colours.
Protection against fire		No.
Alarm device		Optional.
Design and material subject to change without prior notice.
