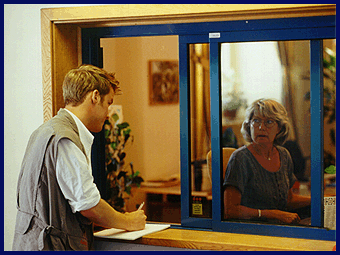

Sliding Window model SH

Robust, horizontally sliding, electrically driven safety sliding window which is suitable for either indoor or outdoor installation. The sliding window has a frame made in either steel or stainless steel. The SH model is specially designed for installations in which strict demands are made on protection against assault or firearm attack. The SH model can be equipped with everything between 6 mm laminated glass up to 75 mm thick bullet-resistant glass. The sliding window is automatically locked. The sliding window is controlled by means of a manoeuvre box or foot switch.

Examples of versions


OX	XO	OLXO

XOOX	XOX	OXRO

OXXO	Fixed window	XO with overhead light

Technical information

Width		Customers choice.
Height		Customers choice.
Frame thickness		50 mm and above*.
Width of side posts		50 mm and above*.
Height of top profile		35 mm and above*.
Height of bottom profile		3 mm and above*.
Width/Height of glass frames		20 mm and above*.
		* These dimensions are dependent on the thickness of the glass and on the safety requirements.
Construction		Motor, transmission and automatic locking are integrated within the frame.
Locking		Mechanical lock which automatically locks the window in closed position. As an option, the window can be provided with a mechanism which locks the window in intervals across the entire opening width. Key lock is optional.
Motor		24 V DC.
Transmission		Cog belt.
Traction force		Approx. 20-40 N.
Relief for transmission		Friction clutch.
Power supply		Transformer. Battery back-up is optional
Type of control		Manoeuvre box. Foot switch is optional.
Glass		Safety glass with thickness 6 mm and above. For instance 6 mm thick class E 60 fire-resistant glass, 16 mm thick class B1 impact-resistant glass or 75 mm thick class C5-SF bullet-resistant glass.
Finish		White powder coating is standard. Other surface finishes available as an option include powder coating or painting in various colours.
Protection against fire		The sliding window can be equipped with fire-resistant glass, e.g. 6 mm thick Pyran S (E 60) or 15 mm thick Pyrostop 30-10 (EI 60). However, the design is not type-approved for installation in firewalls, and object approval would then be necessary, hence we recommend our type-approved model SV-E60 instead. Please get in touch with our sales personnel for further information.
Alarm device		Optional.
Design and material subject to change without prior notice.
