Sliding Window model SV-E60

Fire-resistant, vertically sliding, electrically driven safety sliding window which is suitable for either indoor or outdoor installation. The sliding window has a powder coated (white is standard) steel frame. The SV-E60 model
is specially designed for installations in which demands are made on fire resistance class E15 - E60.
The sliding window is provided with 6 mm Pyran S fire resistant glass. The sliding window is equipped with a safety latch which prevents the window from dropping in the event of an accident.
The SV-E60 is automatically locked in the closed position and at intervals across the entire opening height.
The sliding window is controlled by means of a manoeuvre box or foot switch.

Version

Window with two sections

Technical information

Width		600 - 1165 mm.
Height		800 - 2100 mm.
Frame thickness		80 mm.
Width of side posts		60 mm.
Height of top profile		70 mm.
Height of bottom profile		U-profile 25 x 25 x 25 mm.
Width/Height of glass frames		40 mm.
Construction		Motor, transmission, safety latch and automatic locking are integrated within the frame.
Locking		Mechanical lock which automatically locks the window in closed position and at 50 mm intervals across the entire opening height.
Motor		24 V DC.
Transmission		Chain.
Traction force		Approx. 20-40 N.
Relief for transmission		Friction clutch.
Power supply		Transformer. Battery back-up is optional
Type of control		Manoeuvre box. Foot switch is optional.
Glass		6 mm Pyran S, fire resistance classification E60,
Finish		White powder coating is standard. Powder coating in other RAL-colours are optional.

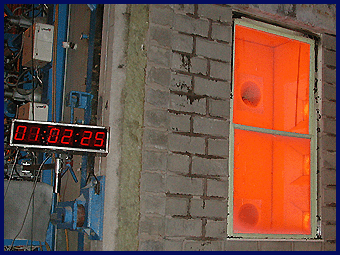

Protection against fire		Fire resistance classification E60. The sliding window is certified by SITAC. Please get in touch with our sales personnel for country specific information.
Alarm device		Optional.
Design and material subject to change without prior notice.
